This package provides tooling to forecast the time-varying reproduction number and use this to forecast reported case counts via a branching process. It supports a range of time series modelling packages including bsts, forecast, and fable. It also supports ensembles via stackr and forecastHyrbid. Forecasts can be assessed by iteractively fitting and then using proper scoring rules (via scoringutils and scoringRules) to compare to both observed case counts and estimated reproduction numbers. Whilst EpiSoon is primarily developed to be used in tandem with EpiNow it can also be used as a standalone package.

Installation

Install the stable version of the package using {drat}:

install.packages("drat")
drat:::add("epiforecasts")
install.packages("EpiSoon")

Install the development version of the package with:

remotes::install_github("epiforecasts/EpiSoon")

Quick start

  • Load packages (bsts and fable for models, ggplot2 for plotting, and cowplot for theming)
library(EpiSoon)
library(bsts)
library(fable)
#> Warning in system("timedatectl", intern = TRUE): running command 'timedatectl'
#> had status 1
library(future)
library(cowplot)
library(dplyr)
obs_rts <- EpiSoon::example_obs_rts %>%
   dplyr::mutate(timeseries = "Region 1") %>%
   dplyr::bind_rows(EpiSoon::example_obs_rts %>%
  dplyr::mutate(timeseries = "Region 2"))

obs_cases <- EpiSoon::example_obs_cases %>%
   dplyr::mutate(timeseries = "Region 1") %>%
   dplyr::bind_rows(EpiSoon::example_obs_cases %>%
   dplyr::mutate(timeseries = "Region 2"))
  • Define the list of models to be compared.
models <- list("AR 3" =
                function(...) {EpiSoon::bsts_model(model =
                     function(ss, y){bsts::AddAr(ss, y = y, lags = 3)}, ...)},
               "Semi-local linear trend" =
                function(...) {EpiSoon::bsts_model(model =
                    function(ss, y){bsts::AddSemilocalLinearTrend(ss, y = y)}, ...)},
               "ARIMA" =
                    function(...){EpiSoon::fable_model(model = fable::ARIMA(y ~ time), ...)})
  • Compare models across timeseries (change the future::plan to do this in parallel).
future::plan("sequential")

## Compare models
forecasts <- EpiSoon::compare_timeseries(obs_rts, obs_cases, models,
                                         horizon = 7, samples = 10,
                                         serial_interval = EpiSoon::example_serial_interval)
#> Warning: Unknown or uninitialised column: `sample`.

#> Warning: Unknown or uninitialised column: `sample`.

forecasts
#> $forecast_rts
#> # A tibble: 532 x 12
#>    timeseries model forecast_date date       horizon median   mean    sd bottom
#>    <chr>      <chr> <chr>         <date>       <int>  <dbl>  <dbl> <dbl>  <dbl>
#>  1 Region 1   AR 3  2020-03-04    2020-03-05       1  1.24  2.35   3.49       0
#>  2 Region 1   AR 3  2020-03-04    2020-03-06       2  1.75  2.09   2.77       0
#>  3 Region 1   AR 3  2020-03-04    2020-03-07       3  0     1.96   4.07       0
#>  4 Region 1   AR 3  2020-03-04    2020-03-08       4  0     1.30   2.49       0
#>  5 Region 1   AR 3  2020-03-04    2020-03-09       5  0     0.564  1.07       0
#>  6 Region 1   AR 3  2020-03-04    2020-03-10       6  0.832 1.60   2.23       0
#>  7 Region 1   AR 3  2020-03-04    2020-03-11       7  1.45  1.49   1.45       0
#>  8 Region 1   AR 3  2020-03-05    2020-03-06       1  0     0.0907 0.287      0
#>  9 Region 1   AR 3  2020-03-05    2020-03-07       2  0     0.591  0.970      0
#> 10 Region 1   AR 3  2020-03-05    2020-03-08       3  0     0.710  1.66       0
#> # … with 522 more rows, and 3 more variables: lower <dbl>, upper <dbl>,
#> #   top <dbl>
#>
#> $rt_scores
#> # A tibble: 420 x 14
#>    timeseries model forecast_date date       horizon    dss  crps   logs   bias
#>    <chr>      <chr> <chr>         <date>       <int>  <dbl> <dbl>  <dbl>  <dbl>
#>  1 Region 1   AR 3  2020-03-04    2020-03-05       1  2.39  0.766   1.98 -0.200
#>  2 Region 1   AR 3  2020-03-04    2020-03-06       2  1.93  0.509   1.64 -0.200
#>  3 Region 1   AR 3  2020-03-04    2020-03-07       3  2.70  1.37    6.40 -0.6
#>  4 Region 1   AR 3  2020-03-04    2020-03-08       4  1.83  1.26    4.87 -0.6
#>  5 Region 1   AR 3  2020-03-04    2020-03-09       5  2.19  1.30    3.78 -0.8
#>  6 Region 1   AR 3  2020-03-04    2020-03-10       6  1.54  0.719   1.93 -0.6
#>  7 Region 1   AR 3  2020-03-04    2020-03-11       7  0.780 0.463   1.52 -0.400
#>  8 Region 1   AR 3  2020-03-05    2020-03-06       1 57.0   2.02  Inf    -1
#>  9 Region 1   AR 3  2020-03-05    2020-03-07       2  2.69  1.20    1.74 -0.6
#> 10 Region 1   AR 3  2020-03-05    2020-03-08       3  1.69  1.42   16.0  -0.8
#> # … with 410 more rows, and 5 more variables: sharpness <dbl>,
#> #   calibration <dbl>, median <dbl>, iqr <dbl>, ci <dbl>
#>
#> $forecast_cases
#> # A tibble: 420 x 12
#>    timeseries model forecast_date date       horizon median  mean    sd bottom
#>    <chr>      <chr> <chr>         <date>       <int>  <dbl> <dbl> <dbl>  <dbl>
#>  1 Region 1   AR 3  2020-03-04    2020-03-05       1   37.5  70.3 104.       0
#>  2 Region 1   AR 3  2020-03-04    2020-03-06       2   61    77.7  98.1      0
#>  3 Region 1   AR 3  2020-03-04    2020-03-07       3    0   168.  421.       0
#>  4 Region 1   AR 3  2020-03-04    2020-03-08       4    0    89.4 228.       0
#>  5 Region 1   AR 3  2020-03-04    2020-03-09       5    0    17.9  35.7      0
#>  6 Region 1   AR 3  2020-03-04    2020-03-10       6   27   248   609.       0
#>  7 Region 1   AR 3  2020-03-04    2020-03-11       7   39   136.  177.       0
#>  8 Region 1   AR 3  2020-03-05    2020-03-06       1    0     4    12.6      0
#>  9 Region 1   AR 3  2020-03-05    2020-03-07       2    0    24.2  40.0      0
#> 10 Region 1   AR 3  2020-03-05    2020-03-08       3    0    26.7  69.1      0
#> # … with 410 more rows, and 3 more variables: lower <dbl>, upper <dbl>,
#> #   top <dbl>
#>
#> $case_scores
#> # A tibble: 420 x 15
#>    timeseries model sample forecast_date date       horizon   dss  crps   logs
#>    <chr>      <chr> <chr>  <chr>         <date>       <int> <dbl> <dbl>  <dbl>
#>  1 Region 1   AR 3  1      2020-03-04    2020-03-05       1  9.18  21.9   5.34
#>  2 Region 1   AR 3  1      2020-03-04    2020-03-06       2  9.07  19.5   5.32
#>  3 Region 1   AR 3  1      2020-03-04    2020-03-07       3 12.0   68.1  18.2
#>  4 Region 1   AR 3  1      2020-03-04    2020-03-08       4 10.8   64.1   6.21
#>  5 Region 1   AR 3  1      2020-03-04    2020-03-09       5 15.4   83.8   5.81
#>  6 Region 1   AR 3  1      2020-03-04    2020-03-10       6 12.8   88.7   7.54
#>  7 Region 1   AR 3  1      2020-03-04    2020-03-11       7 10.3   79.0   6.58
#>  8 Region 1   AR 3  1      2020-03-05    2020-03-06       1 38.0   65.4 Inf
#>  9 Region 1   AR 3  1      2020-03-05    2020-03-07       2 10.1   49.8   5.56
#> 10 Region 1   AR 3  1      2020-03-05    2020-03-08       3  9.69  76.0 284.
#> # … with 410 more rows, and 6 more variables: bias <dbl>, sharpness <dbl>,
#> #   calibration <dbl>, median <dbl>, iqr <dbl>, ci <dbl>

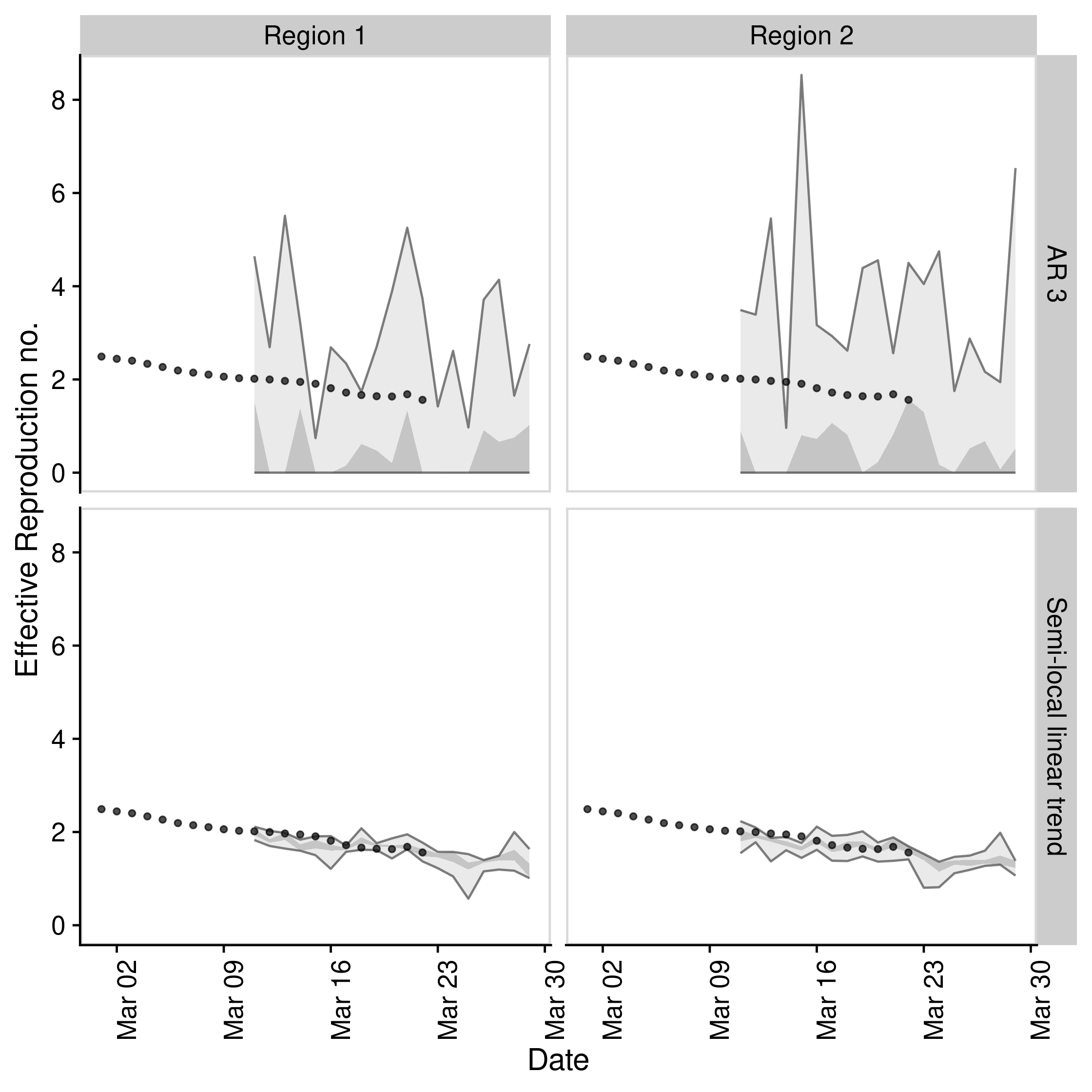

  • Plot an evaluation of Rt forecasts using iterative fitting.
EpiSoon::plot_forecast_evaluation(forecasts$forecast_rts, obs_rts, c(7)) +
   ggplot2::facet_grid(model ~ timeseries) +
   cowplot::panel_border()

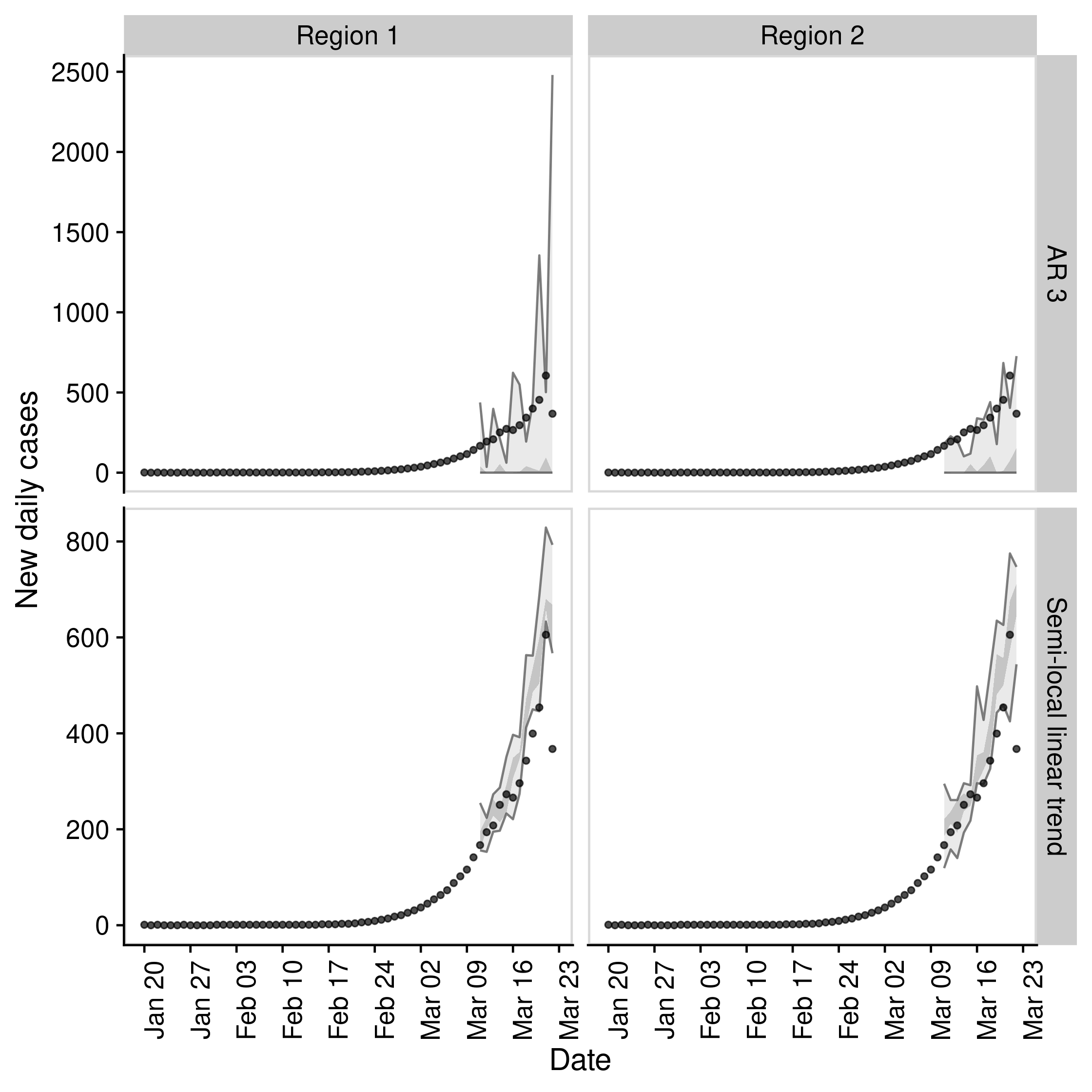

  • Plot an evaluation of case forecasts using iterative fitting
EpiSoon::plot_forecast_evaluation(forecasts$forecast_cases, obs_cases, c(7)) +
   ggplot2::facet_grid(model ~ timeseries, scales = "free") +
   cowplot::panel_border()

  • Summarise the forecasts by model scored against observed cases
EpiSoon::summarise_scores(forecasts$case_scores)
#> # A tibble: 18 x 9
#>    score  model   bottom    lower   median      mean    upper      top        sd
#>    <chr>  <chr>    <dbl>    <dbl>    <dbl>     <dbl>    <dbl>    <dbl>     <dbl>
#>  1 bias   AR 3  -1.00e+0 -8.00e-1 -8.00e-1   -0.69   -6.00e-1   -0.200    0.249
#>  2 bias   Semi… -1.00e+0  2.00e-1  6.00e-1    0.492   1.00e+0    1        0.554
#>  3 calib… AR 3   8.57e-5  8.57e-5  8.57e-5    0.0215  1.33e-3    0.181    0.0814
#>  4 calib… Semi…  8.57e-5  8.57e-5  8.57e-5    0.0615  5.52e-4    0.834    0.164
#>  5 ci     AR 3   1.34e+2  3.60e+2  6.31e+2 1421.      1.32e+3 7967.    2035.
#>  6 ci     Semi…  2.61e+1  4.98e+1  1.09e+2  947.      1.41e+3 5420.    1592.
#>  7 crps   AR 3   3.53e+1  8.94e+1  1.35e+2  152.      1.96e+2  362.      87.3
#>  8 crps   Semi…  3.44e+0  6.66e+0  1.53e+1   40.8     7.01e+1  161.      48.8
#>  9 dss    AR 3   9.13e+0  1.09e+1  1.19e+1   16.2     1.35e+1   53.9     20.1
#> 10 dss    Semi…  4.72e+0  6.13e+0  7.80e+0   13.2     1.40e+1   50.3     16.5
#> 11 iqr    AR 3   1.25e+2  3.57e+2  5.72e+2  677.      9.11e+2 1776.     440.
#> 12 iqr    Semi…  1.36e+1  2.92e+1  6.80e+1  178.      3.09e+2  675.     208.
#> 13 logs   AR 3   5.61e+0  6.64e+0  7.33e+0  Inf       1.17e+1  Inf      Inf
#> 14 logs   Semi…  3.37e+0  4.09e+0  4.80e+0  Inf       7.29e+0   47.6    Inf
#> 15 median AR 3   1.15e+2  2.66e+2  4.36e+2  472.      5.92e+2 1119.     262.
#> 16 median Semi…  2.00e+0  1.60e+1  4.75e+1  100.      1.70e+2  340.     112.
#> 17 sharp… AR 3   0.       0.       1.11e+1   58.5     7.01e+1  386.      99.6
#> 18 sharp… Semi…  6.67e+0  1.35e+1  2.15e+1   26.7     3.41e+1   76.8     18.7

Contributing

File an issue here if you have identified an issue with the package. Please note that due to operational constraints priority will be given to users informing government policy or offering methodological insights. We welcome all contributions, in particular those that improve the approach or the robustness of the code base.

Docker

This package was developed in a docker container based on the rocker/geospatial docker image.

To build the docker image run (from the EpiSoon directory):

docker build . -t episoon

To run the docker image run:

docker run -d -p 8787:8787 --name episoon -e USER=episoon -e PASSWORD=episoon episoon

The rstudio client can be found on port :8787 at your local machines ip. The default username:password is epinow:epinow, set the user with -e USER=username, and the password with - e PASSWORD=newpasswordhere. The default is to save the analysis files into the user directory.

To mount a folder (from your current working directory - here assumed to be tmp) in the docker container to your local system use the following in the above docker run command (as given mounts the whole episoon directory to tmp).

--mount type=bind,source=$(pwd)/tmp,target=/home/EpiSoon

To access the command line run the following:

docker exec -ti episoon bash
