Health-zone forecasts
This page splits the one-week-ahead confirmed-case forecast across the health zones, as defined in the health-zone model Methods section. The national forecast is on the forecasts page and the split by province on the province forecasts page. How these forecasts have scored against what each zone went on to report is in the forecast by health zone across releases evaluation. The zone estimates behind the split are on the health-zone estimates page.
Load packages, data and fitted chains
# Shared setup: packages, observations and the fit registry. See
# `docs/pages/_setup.jl`.
using BVDOutbreakSize
include(joinpath(pkgdir(BVDOutbreakSize), "docs", "pages", "_setup.jl"))validation_forecast_from (generic function with 1 method)# The zone fit this page reads, loaded from the cache here.
chn_local = load_fit("local");Summary
The bullets rank the zones, and the figure and table below give each zone's projection.
Split the one-week-ahead forecast across the zones
# `zone_stage_inputs` is defined in the shared setup, so the zone
# estimates page draws the same forecast from the same fixed inputs.
zone_inputs = zone_stage_inputs(; forecast = true);
zone_patch = zone_inputs.patch_of_zone;
zone_week_end = obs.cutoff + Day(7);
ZONE_THRESHOLDS = (1, 5, 10, 20)
zone_fc = zone_forecast(chn_local, zone_inputs);
zone_fc_draws = zone_forecast_draws(zone_fc, zone_inputs);
zone_fc_probs = zone_forecast_probabilities(
zone_fc, zone_inputs; thresholds = ZONE_THRESHOLDS, draws = zone_fc_draws
);
zone_forecast_summary = zone_forecast_table(
zone_fc, zone_inputs; thresholds = ZONE_THRESHOLDS
);
# Cases allocated to each zone over the past one, two and four weeks, and
# the last vintage on which each zone's count rose.
zone_recent = Dict(
w => zone_recent_cases(zone_inputs; window = w) for w in (7, 14, 28)
);
zone_last_case = zone_last_case_dates(zone_inputs);
zone_forecast_bullets = let n_zones = length(zone_inputs.zone_labels)
pct(x) = string(round(Int, 100 * x), "%")
lead = first(
sortperm([median(v) for v in zone_fc_draws.zones]; rev = true), 3
)
ranked = join(
[
"$(zone_inputs.zone_labels[z]) " *
"$(median_interval_text(zone_fc_draws.zones[z]))"
for z in lead
], "; "
)
quiet = findall(iszero, zone_recent[14])
quiet_text = isempty(quiet) ?
"every zone has had a case allocated over the past two weeks." :
let z = quiet[argmax(zone_fc_probs[quiet, 1])]
"$(length(quiet)) zones have had no case allocated over the " *
"past two weeks. $(zone_inputs.zone_labels[z]) is the " *
"most likely of them to report one, at " *
"$(pct(zone_fc_probs[z, 1]))."
end
join(
[
"Projected counts are for the week to $(zone_week_end).", "",
"- **Most new confirmed cases:** $(ranked).",
"- **Chance of a case:** " *
"$(count(>=(0.5), zone_fc_probs[:, 1])) of $(n_zones) " *
"zones have at least an even chance of reporting a " *
"confirmed case, and " *
"$(count(>=(0.5), zone_fc_probs[:, 3])) of reporting at " *
"least ten.",
"- **Quiet zones:** $(quiet_text)",
], "\n"
)
end;Projected counts are for the week to 2026-11-08.
Most new confirmed cases: Beni about 102 (90% credible interval 50 to 183); Bunia about 62 (90% credible interval 27 to 123); Mandima about 43 (90% credible interval 14 to 96).
Chance of a case: 30 of 66 zones have at least an even chance of reporting a confirmed case, and 13 of reporting at least ten.
Quiet zones: 23 zones have had no case allocated over the past two weeks. Mangobo is the most likely of them to report one, at 70%.

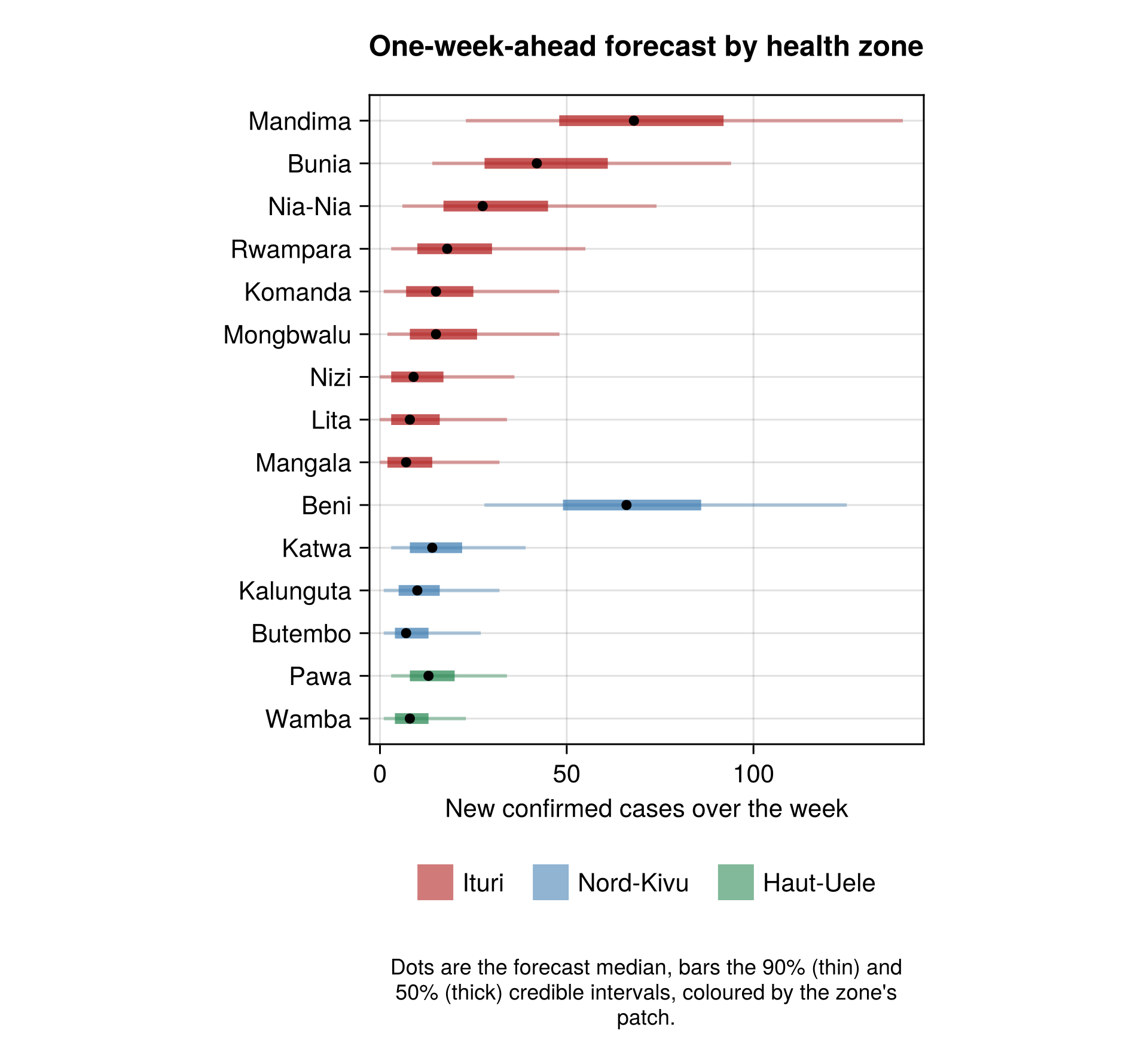

One-week-ahead forecast by health zone
The patch totals in the table are the projections on the province forecasts page.
One-week-ahead zone forecast
zone_forecast_fig = plot_zone_forecast(
zone_fc_draws.zones,
zone_inputs.zone_labels, zone_patch;
patch_labels = zone_inputs.patch_labels, top = 15
);
# Every zone forecast, largest first, then every patch total.
zone_forecast_display = let t = zone_forecast_summary
zones = sort(t[t.zone .!= "Patch total", :], :median; rev = true)
vcat(zones, t[t.zone .== "Patch total", :])
end;
| zone | patch | median | lower_90 | lower_60 | lower_30 | upper_30 | upper_60 | upper_90 | p_ge_1 | p_ge_5 | p_ge_10 | p_ge_20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Beni | Nord-Kivu | 102 | 50 | 72 | 88 | 119 | 141 | 183 | 1 | 1 | 1 | 1 |
| Bunia | Ituri | 62 | 27 | 41 | 51 | 75 | 92 | 123 | 1 | 1 | 1 | 0.98 |
| Mandima | Ituri | 43 | 14 | 25 | 34 | 53 | 66 | 96 | 1 | 1 | 0.98 | 0.89 |
| Mambasa | Ituri | 28 | 6 | 14 | 22 | 37 | 51 | 78 | 1 | 0.97 | 0.89 | 0.68 |
| Rwampara | Ituri | 23 | 5 | 12 | 17 | 30 | 39 | 59 | 1 | 0.96 | 0.87 | 0.59 |
| Oicha | Nord-Kivu | 20 | 5 | 10 | 15 | 27 | 35 | 55 | 1 | 0.94 | 0.81 | 0.51 |
| Mutwanga | Nord-Kivu | 17 | 3 | 8 | 12 | 23 | 31 | 51 | 0.99 | 0.9 | 0.74 | 0.43 |
| Katwa | Nord-Kivu | 16 | 3 | 8 | 12 | 22 | 30 | 48 | 0.99 | 0.91 | 0.75 | 0.42 |
| Wamba | Haut-Uele | 14 | 3 | 7 | 11 | 18 | 24 | 40 | 1 | 0.91 | 0.7 | 0.31 |
| Nizi | Ituri | 12 | 1 | 5 | 9 | 17 | 24 | 41 | 0.98 | 0.82 | 0.61 | 0.3 |
| Butembo | Nord-Kivu | 12 | 1 | 5 | 8 | 16 | 23 | 40 | 0.98 | 0.81 | 0.58 | 0.26 |
| Mabalako | Nord-Kivu | 11 | 1 | 4 | 7 | 15 | 22 | 38 | 0.97 | 0.8 | 0.57 | 0.26 |
| Kalunguta | Nord-Kivu | 10 | 1 | 4 | 7 | 14 | 21 | 36 | 0.97 | 0.78 | 0.53 | 0.22 |
| Lita | Ituri | 9 | 1 | 3 | 6 | 13 | 20 | 36 | 0.95 | 0.72 | 0.48 | 0.2 |
| Pawa | Haut-Uele | 7 | 1 | 3 | 5 | 10 | 14 | 23 | 0.97 | 0.69 | 0.34 | 0.08 |
| Mangala | Ituri | 4 | 0 | 1 | 2 | 7 | 11 | 23 | 0.82 | 0.47 | 0.25 | 0.08 |
| Musienene | Nord-Kivu | 4 | 0 | 1 | 2 | 6 | 11 | 22 | 0.81 | 0.44 | 0.23 | 0.06 |
| Isiro | Haut-Uele | 4 | 0 | 2 | 3 | 6 | 9 | 16 | 0.93 | 0.49 | 0.19 | 0.03 |
| Makiso-Kisangani | Tshopo | 4 | 0 | 2 | 3 | 6 | 8 | 13 | 0.93 | 0.45 | 0.13 | 0.01 |
| Nia-Nia | Ituri | 2 | 0 | 0 | 1 | 4 | 9 | 20 | 0.71 | 0.35 | 0.17 | 0.05 |
| Boma Mangbetu | Haut-Uele | 2 | 0 | 0 | 1 | 3 | 4 | 8 | 0.73 | 0.17 | 0.03 | 0 |
| Kabondo | Tshopo | 2 | 0 | 0 | 1 | 2 | 4 | 7 | 0.75 | 0.13 | 0.01 | 0 |
| Bambu | Ituri | 1 | 0 | 0 | 0 | 2 | 5 | 12 | 0.54 | 0.2 | 0.08 | 0.02 |
| Komanda | Ituri | 1 | 0 | 0 | 0 | 2 | 4 | 12 | 0.51 | 0.19 | 0.08 | 0.02 |
| Nyankunde | Ituri | 1 | 0 | 0 | 0 | 2 | 4 | 12 | 0.53 | 0.2 | 0.08 | 0.02 |
| Lubero | Nord-Kivu | 1 | 0 | 0 | 0 | 2 | 5 | 14 | 0.57 | 0.23 | 0.1 | 0.02 |
| Vuhovi | Nord-Kivu | 1 | 0 | 0 | 0 | 3 | 6 | 14 | 0.62 | 0.26 | 0.11 | 0.02 |
| Bafwasende | Tshopo | 1 | 0 | 0 | 0 | 2 | 3 | 5 | 0.64 | 0.07 | 0 | 0 |
| Mangobo | Tshopo | 1 | 0 | 0 | 1 | 2 | 3 | 6 | 0.7 | 0.1 | 0.01 | 0 |
| Adja | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.05 | 0.01 | 0 | 0 |
| Ariwara | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.07 | 0.02 | 0.01 | 0 |
| Aru | Ituri | 0 | 0 | 0 | 0 | 0 | 1 | 6 | 0.27 | 0.07 | 0.03 | 0 |
| Aungba | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.07 | 0.01 | 0 | 0 |
| Boga | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.08 | 0.02 | 0.01 | 0 |
| Damas | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 4 | 0.15 | 0.04 | 0.01 | 0 |
| Drodro | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0.12 | 0.03 | 0.01 | 0 |
| Fataki | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0.15 | 0.04 | 0.01 | 0 |
| Gety | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 4 | 0.17 | 0.04 | 0.01 | 0 |
| Kambala | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.03 | 0.01 | 0 | 0 |
| Kilo | Ituri | 0 | 0 | 0 | 0 | 0 | 1 | 6 | 0.25 | 0.07 | 0.03 | 0 |
| Logo | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 4 | 0.17 | 0.04 | 0.01 | 0 |
| Lolwa | Ituri | 0 | 0 | 0 | 0 | 0 | 2 | 7 | 0.29 | 0.09 | 0.03 | 0.01 |
| Mahagi | Ituri | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.07 | 0.02 | 0 | 0 |
| Mongbwalu | Ituri | 0 | 0 | 0 | 0 | 1 | 4 | 12 | 0.47 | 0.17 | 0.07 | 0.01 |
| Rimba | Ituri | 0 | 0 | 0 | 0 | 0 | 1 | 5 | 0.21 | 0.05 | 0.02 | 0 |
| Tchomia | Ituri | 0 | 0 | 0 | 0 | 1 | 3 | 12 | 0.47 | 0.16 | 0.06 | 0.01 |
| Alimbongo | Nord-Kivu | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0.14 | 0.03 | 0.01 | 0 |
| Biena | Nord-Kivu | 0 | 0 | 0 | 0 | 1 | 3 | 10 | 0.44 | 0.14 | 0.05 | 0.01 |
| Goma | Nord-Kivu | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.03 | 0.01 | 0 | 0 |
| Kayna | Nord-Kivu | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.08 | 0.02 | 0.01 | 0 |
| Kyondo | Nord-Kivu | 0 | 0 | 0 | 0 | 2 | 4 | 11 | 0.51 | 0.19 | 0.07 | 0.02 |
| Manguredjipa | Nord-Kivu | 0 | 0 | 0 | 0 | 0 | 2 | 7 | 0.32 | 0.09 | 0.03 | 0.01 |
| Masereka | Nord-Kivu | 0 | 0 | 0 | 0 | 1 | 4 | 11 | 0.48 | 0.17 | 0.07 | 0.01 |
| Dungu | Haut-Uele | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.05 | 0 | 0 | 0 |
| Gombari | Haut-Uele | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.08 | 0 | 0 | 0 |
| Rungu | Haut-Uele | 0 | 0 | 0 | 0 | 0 | 1 | 3 | 0.32 | 0.02 | 0 | 0 |
| Miti-Murhesa | Sud-Kivu | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.14 | 0 | 0 | 0 |
| Lubunga | Tshopo | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.17 | 0 | 0 | 0 |
| Tshopo | Tshopo | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0.3 | 0.01 | 0 | 0 |
| Wanie-Rukula | Tshopo | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.15 | 0 | 0 | 0 |
| Buta | Bas-Uele | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.15 | 0 | 0 | 0 |
| Ganga | Bas-Uele | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0.31 | 0 | 0 | 0 |
| Viadana | Bas-Uele | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0.3 | 0 | 0 | 0 |
| Bulu | Sud-Ubangi | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.17 | 0 | 0 | 0 |
| Wapinda | Nord-Ubangi | 0 | 0 | 0 | 0 | 1 | 2 | 4 | 0.45 | 0.03 | 0 | 0 |
| Yakoma | Nord-Ubangi | 0 | 0 | 0 | 0 | 1 | 1 | 3 | 0.41 | 0.03 | 0 | 0 |
| Patch total | Ituri | 230 | 125 | 175 | 200 | 258 | 291 | 366 | ||||
| Patch total | Nord-Kivu | 229 | 137 | 176 | 204 | 258 | 294 | 362 | ||||
| Patch total | Haut-Uele | 30 | 10 | 18 | 24 | 37 | 48 | 77 | ||||
| Patch total | Sud-Kivu | 0 | 0 | 0 | 0 | 0 | 0 | 1 | ||||
| Patch total | Tshopo | 10 | 2 | 5 | 7 | 13 | 17 | 28 | ||||
| Patch total | Bas-Uele | 1 | 0 | 0 | 0 | 1 | 2 | 4 | ||||
| Patch total | Sud-Ubangi | 0 | 0 | 0 | 0 | 0 | 0 | 1 | ||||
| Patch total | Nord-Ubangi | 1 | 0 | 0 | 0 | 2 | 3 | 6 |
Zones quiet for two weeks
Quiet zones ranked by the chance of a case
zone_quiet_display = let
quiet = findall(iszero, zone_recent[14])
order = quiet[sortperm(zone_fc_probs[quiet, 1]; rev = true)]
DataFrame(
zone = zone_inputs.zone_labels[order],
patch = zone_inputs.patch_labels[zone_patch[order]],
cases = zone_inputs.cumulative[order],
cases_past_4_weeks = zone_recent[28][order],
last_case = [
ismissing(d) ? "" : string(d) for d in zone_last_case[order]
],
p_ge_1 = round.(zone_fc_probs[order, 1]; digits = 2),
p_ge_5 = round.(zone_fc_probs[order, 2]; digits = 2),
)
end;| zone | patch | cases | cases_past_4_weeks | last_case | p_ge_1 | p_ge_5 |
|---|---|---|---|---|---|---|
| Mangobo | Tshopo | 10 | 2 | 2026-10-08 | 0.7 | 0.1 |
| Manguredjipa | Nord-Kivu | 16 | 3 | 2026-10-18 | 0.32 | 0.09 |
| Ganga | Bas-Uele | 5 | 2 | 2026-10-09 | 0.31 | 0 |
| Viadana | Bas-Uele | 6 | 0 | 2026-09-26 | 0.3 | 0 |
| Lubunga | Tshopo | 1 | 0 | 2026-07-11 | 0.17 | 0 |
| Gety | Ituri | 11 | 2 | 2026-10-11 | 0.17 | 0.04 |
| Logo | Ituri | 14 | 1 | 2026-10-05 | 0.17 | 0.04 |
| Bulu | Sud-Ubangi | 2 | 0 | 2026-09-22 | 0.17 | 0 |
| Wanie-Rukula | Tshopo | 1 | 0 | 2026-08-01 | 0.15 | 0 |
| Fataki | Ituri | 84 | 1 | 2026-10-06 | 0.15 | 0.04 |
| Damas | Ituri | 41 | 1 | 2026-10-18 | 0.15 | 0.04 |
| Buta | Bas-Uele | 1 | 0 | 2026-08-12 | 0.15 | 0 |
| Miti-Murhesa | Sud-Kivu | 3 | 0 | 2026-06-01 | 0.14 | 0 |
| Drodro | Ituri | 15 | 0 | 2026-09-04 | 0.12 | 0.03 |
| Gombari | Haut-Uele | 3 | 0 | 2026-08-22 | 0.08 | 0 |
| Kayna | Nord-Kivu | 3 | 0 | 2026-10-02 | 0.08 | 0.02 |
| Boga | Ituri | 2 | 0 | 2026-08-24 | 0.08 | 0.02 |
| Ariwara | Ituri | 8 | 0 | 2026-08-17 | 0.07 | 0.02 |
| Aungba | Ituri | 12 | 0 | 2026-08-20 | 0.07 | 0.01 |
| Dungu | Haut-Uele | 1 | 0 | 2026-09-18 | 0.05 | 0 |
| Adja | Ituri | 11 | 1 | 2026-10-06 | 0.05 | 0.01 |
| Kambala | Ituri | 2 | 0 | 2026-06-30 | 0.03 | 0.01 |
| Goma | Nord-Kivu | 1 | 0 | 2026-07-02 | 0.03 | 0.01 |
Saving zone forecast assets
The summary dashboard shows the summary bullets.
Write the zone forecast asset
dashboard_dir = joinpath(
pkgdir(BVDOutbreakSize), "docs", "src", "summary_assets"
)
mkpath(dashboard_dir)
open(joinpath(dashboard_dir, "zone_forecast.md"), "w") do io
print(io, zone_forecast_bullets)
endArchiving the zone forecast
Each release carries the zone forecast draws, for scoring once the week has been reported.
Write the zone forecast archive
output_dir = get(
ENV, "BVD_OUTPUT_DIR",
joinpath(pkgdir(BVDOutbreakSize), "output")
)
mkpath(output_dir)
CSV.write(
joinpath(output_dir, "zone_forecast.csv"),
zone_forecast_archive(
zone_fc, zone_inputs; made_date = zone_inputs.cutoff, thin = 5
)
);The full analysis code, data and model definitions are in the epiforecasts/BVDOutbreakSize repository.
